EnGenius Cloud

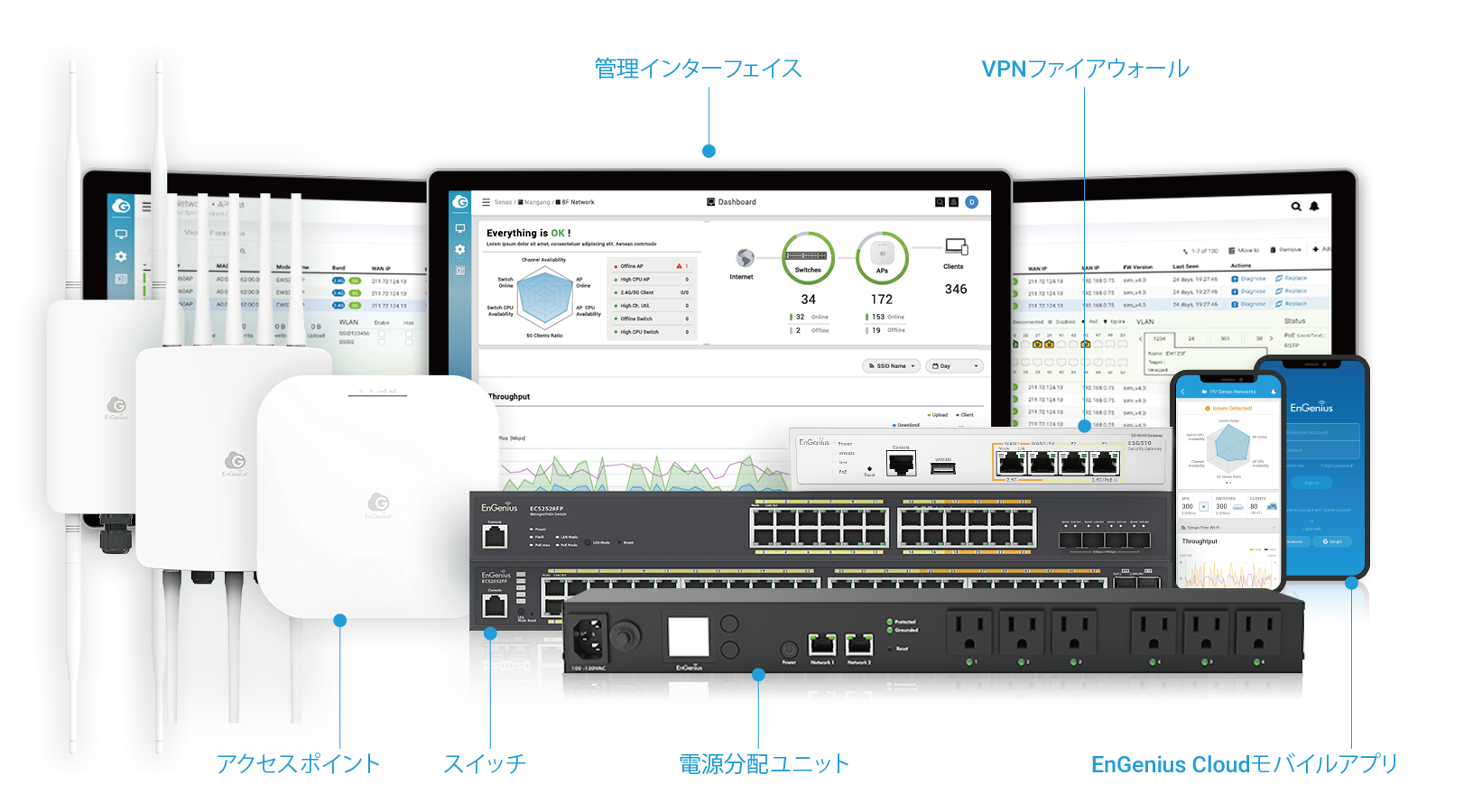

EnGenius Cloudに対応したデバイス

EnGenius Cloudデバイスのラインナップは、直感的なインターフェイスから一元管理されます。多機能で使いやすいダッシュボードにより、顧客は運用コストを削減し、組織の目標を達成するためのITイニシアチブを迅速に実装できます。
cloud-family
クラウドマネージド
アクセスポイント
クラウドマネージド
スイッチ

クラウドマネージドアクセスポイント

Cloud-managed Access Points - wifi-6

よりいい接続体験の
ためのWi-Fi6テクノロジー

より大容量、高効率、パフォーマンス向上のための将来性のあるWi-Fi6テクノロジーが搭載。

Cloud-managed Access Points- deploy

柔軟な展開と
取り付け方法

構造上の制限や不足のケーブル接続を解決するために、PoE接続を通じて屋内および屋外環境に適しています。

アクセスポイント製品の比較表

Model
Name
down chevron up chevron
Model
Number
down chevron up chevron
Wi-Fi
down chevron up chevron
Speed
(2.4 GHz)
down chevron up chevron
Speed
(5 GHz)
down chevron up chevron
Tx Power
(2.4 GHz)
down chevron up chevron
Tx Power
(5 GHz)
down chevron up chevron
Eth.
Port
down chevron up chevron
PSE
Out
down chevron up chevron
PoE
down chevron up chevron
Antenna
(2.4 GHz)
down chevron up chevron
Antenna
(5 GHz)
down chevron up chevron
ECW220 2 1 Cloud6 2x2 ECW220 11ax(Wi-Fi 6) 600 1,200 22 dBm* 22 dBm* 1x 1Gbps No af/at 2 x 4 dBi 2 x 5 dBi
ECW230 2 1 Cloud6 4x4 ECW230 11ax(Wi-Fi 6) 1,200 2,400 23 dBm 23 dBm 1x 2.5Gbps No at 4 x 5 dBi 4 x 6 dBi
New
ECW220S Cloud6 2x2 S 		ECW220S 11ax(Wi-Fi 6) 600 1,200 22 dBm 22 dBm 1x 1Gbps No af/at 2 x 4 dBi 2 x 5 dBi
New
ECW230S Cloud6 4x4 S 		ECW230S 11ax(Wi-Fi 6) 1,200 2,400 23 dBm 23 dBm 1x 2.5Gbps No at 4 x 5 dBi 4 x 6 dBi
ECW260 1 Cloud6 2x2 Outdoor ECW260 11ax(Wi-Fi 6) 600 1,200 23 dBm 25 dBm 1x 2.5Gbps No af/at 2 x 5 dBi
(External Omni-Directional)		 2 x 5 dBi
(External Omni-Directional)

*The data is for ECW220 hardware v2 only. For hardware v1, the Tx-power is 20 dBm.

Model
down chevron up chevron
Wi-Fi
down chevron up chevron
Speed
(2.4 GHz)
down chevron up chevron
Speed
(5 GHz)
down chevron up chevron
Speed
(6 GHz)
down chevron up chevron
Tx Power
(2.4 GHz)
down chevron up chevron
Tx Power
(5 GHz)
down chevron up chevron
Tx Power
(6 GHz)
down chevron up chevron
Eth. Port
down chevron up chevron
PSE Out
down chevron up chevron
PoE
down chevron up chevron
Antenna
(2.4 GHz)
down chevron up chevron
Antenna
(5 GHz)
down chevron up chevron
Antenna
(6 GHz)
down chevron up chevron
Outdoor
down chevron up chevron
ECW220 2 1 ECW220 11ax(Wi-Fi 6) 600 1,200 - 22 dBm* 22 dBm* - 1x 1Gbps No af/at 2 x 4 dBi 2 x 5 dBi - No
ECW230 2 1 ECW230 11ax(Wi-Fi 6) 1,200 2,400 - 23 dBm 23 dBm - 1x 2.5Gbps No at 4 x 5 dBi 4 x 6 dBi - No
New
ECW220S ECW220S 		11ax(Wi-Fi 6) 600 1,200 - 22 dBm 22 dBm - 1x 1Gbps No af/at 2 x 4 dBi 2 x 5 dBi - No
New
ECW230S ECW230S 		11ax(Wi-Fi 6) 1,200 2,400 - 23 dBm 23 dBm - 1x 2.5Gbps No at 4 x 5 dBi 4 x 6 dBi - No
ECW260 1 ECW260 11ax(Wi-Fi 6) 600 1,200 - 23 dBm 25 dBm - 1x 2.5Gbps No af/at 2 x 5 dBi
(External Omni-Directional)		 2 x 5 dBi
(External Omni-Directional)		 - Yes

*The data is for ECW220 hardware v2 only. For hardware v1, the Tx-power is 20 dBm.

無料サービスで始まり、PROライセンスとともに成長

EnGeniusクラウドデバイスには、迅速な展開、簡単な管理、および視覚化された洞察のネットワーク管理のすべての重要な機能が搭載しています。さらに、PROライセンスを使用してアップグレードすることにより、デバイスのセキュリティと高度な機能を強化させ、ビジネスが急速に成長している間、詳細な監視によるきめ細かいコントロールが可能になります。
Basic
Basic Plan

For SOHO, SMB, and fast-growing retail and hospitality to manage networks in a simple way

PRO License
Professional Plan

For SMEs, managed service providers and networks required more advanced features

Cloud License Price
FREE (no license needed)
  • Require Cloud PRO License
Platform-wide​
Cloud Network Management
簡単な管理
  • Quick deployment with QR-code scan
  • Hierarchy view & multi-tenant design
  • Two factor authentication
  • Schedule firmware upgrade
スマートネットワーキング
  • Quick access to device live view
  • Variety of user authentications
  • Custom splash page
  • Block/ VIPed client
可視化されたインサイト
  • Network dashboard
  • AI-driven advisory board
  • Device real-time metrics
  • Usage of Layer 7 applications
Statistic Data Stored question circle
The statistics period on dashboard and log stored
3 days
30 days
Team Members question circle
The administrators (admin or viewer) of Org and Networks
10 users
Unlimited
Clone Network question circle
Create a new Network with same network-wide settings of an existing Network
—
Cloud Radius and Voucher Service question circle
The authentication entries allowed while use EnGenius Cloud Authentication including authentication users and voucher users
100 entries
10000 entries
Alert Notification question circle
More options to configure for notification
On-line/ off-line
Backup & Restore question circle
Pro plan can backup all Network-wide settings and restore in case mis-configuration during the period
(Network-wide settings)
—
Client List Export (.csv) question circle
Export client list as .csv file
—
API Integration (3rd party) question circle
API calls required by 3rd party platform
—
Scheduling Report System question circle
Basic can generate only 1 report. Pro plan can schedule the report regularly
1 report
Customer Support
Limited support
Priority support with on-line tool
AP PRO License
Access Point
Client Timeline question circle
Pull up an entire history of the client device to trace back the time and behavior when a network problem may have originated.
—
Wi-Fi Floor Plan Heatmap question circle
Simulate and visualize the signal strength based on AP’s location
Wi-Fi Floor question circle
Pro plan allows user to add obstacles like walls and see how those obstacle might take effect on the heat map. Virtual AP can be added to see the heat map coverage before purchase
(Obstacle & Virtual AP)
—
Dynamic VLAN question circle
Same SSID can have multiple VLANs
—
myPSK question circle
Same SSID can have different PSK mapping to different VLANs
(dynamic/ private PSK)
—
VLAN Pooling question circle
VLAN is randomly assigned to client
—
Broadcast Suppression question circle
Suppress broadcast and multicast traffic to WiFi
—
AD/ LDAP/ Google Authentication question circle
Support AD / LDAP server and Google Authentication
—
Live Diagnostic Tools question circle
Ping, Speed Test, Trace Route, Channel Utilization
Limited
Live Client List question circle
Real-Time connected client list
—
RF Spectrum Analysis ** question circle
Spectrum Spectrogram waterfall map
—
AirGuard** question circle
WIDS/WIPS
Wireless intrusion detection and prevention system
—
Zero-Wait DFS ** question circle
Provide an uninterrupted change of DFS channels and avoid connection disruption from radar detection
**Available for AP models with dedicated radio only. (i.e. ECW-xxxS)

無料サービスで始まり、PROライセンスとともに成長

EnGeniusクラウドデバイスには、迅速な展開、簡単な管理、および視覚化された洞察のネットワーク管理のすべての重要な機能が搭載しています。さらに、PROライセンスを使用してアップグレードすることにより、デバイスのセキュリティと高度な機能を強化させ、ビジネスが急速に成長している間、詳細な監視によるきめ細かいコントロールが可能になります。
Basic_badge_out
Basic Plan

For SOHO, SMB, and fast-growing retail and hospitality to manage networks in a simple way

  • FREE (no license needed)
Platform-wide​​
  • Cloud Network Management​
  • Statistic Data Stored: question circle
    The statistics period on dashboard and log stored
     3 days
  • Team Members: question circle
    The administrators (admin or viewer) of Org and Networks
     10 users
  • Cloud Radius and Voucher Service : question circle
    The authentication entries allowed while use EnGenius Cloud Authentication including authentication users and voucher users
     100 entries
  • Alert Notification: question circle
    More options to configure for notification
     On-line/ off-line
  • Scheduling Report System: question circle
    Basic can generate only 1 report. Pro plan can schedule the report regularly
     1 report
  • Customer Support: Limited Support​
Access Point
  • Wi-Fi Floor Plan Heatmap question circle
    Simulate and visualize the signal strength based on AP’s location
  • Live Diagnostic Tools: question circle
    Ping, Speed Test, Trace Route, Channel Utilization
    Limited
  • Zero-Wait DFS ** question circle
    Provide an uninterrupted change of DFS channels and avoid connection disruption from radar detection
**Available for AP models with dedicated radio only. (i.e. ECW-xxxS)
PRO_badge_out
Professional Plan

For SMEs, managed service providers and networks required more advanced features

  • Require Cloud PRO License
Platform-wide​​
  • Cloud Network Management
  • Statistic Data Stored: question circle
    The statistics period on dashboard and log stored
     30 days
  • Team Member: question circle
    The administrators (admin or viewer) of Org and Networks
     Unlimited
  • EnGenius Cloud Authentication: question circle
    The authentication entries allowed while use EnGenius Cloud Authentication including authentication users and voucher users
     10000 entries
  • Change Log: question circle
    More detail change information is provided in Pro feature plan
     Detail log
  • Notification question circle
    More options to configure for notification
  • Backup & Restore (Network-wide settings) question circle
    Pro plan can backup all Network-wide settings and restore in case mis-configuration during the period
  • Client List Export (.csv) question circle
    Export client list as .csv file
  • API Integration (3rd party) question circle
    API calls required by 3rd party platform
  • Scheduling Report System: question circle
    Basic can generate only 1 report. Pro plan can schedule the report regularly
     Unlimited
  • Customer Support: Priority support with on-line tool
Basic badge AP 8
Access Point
  • Client Timeline question circle
    Pull up an entire history of the client device to trace back the time and behavior when a network problem may have originated.
  • Wi-Fi Floor Plan Heatmap question circle
    Simulate and visualize the signal strength based on AP’s location
  • Wi-Fi Floor (Obstacle & Virtual AP) question circle
    Pro plan allows user to add obstacles like walls and see how those obstacle might take effect on the heat map. Virtual AP can be added to see the heat map coverage before purchase
  • Dynamic VLAN question circle
    Same SSID can have multiple VLANs
  • myPSK(dynamic/private PSK) question circle
    Same SSID can have different PSK mapping to different VLANs
  • VLAN Pooling question circle
    VLAN is randomly assigned to client
  • Broadcast Suppression question circle
    Suppress broadcast and multicast traffic to WiFit
  • AD / LDAP / Google Authentication question circle
    Support AD / LDAP server and Google Authentication
  • Live Diagnostic Tools question circle
    Ping, Speed Test, Trace Route, Channel Utilization
  • Live Client List question circle
    Real-Time connected client list
  • RF Spectrum Analysis ** question circle
    Spectrum Spectrogram waterfall mapt
  • AirGuard** question circle
    WIDS/WIPS Wireless intrusion detection and prevention system
  • Zero-Wait DFS ** question circle
    Provide an uninterrupted change of DFS channels and avoid connection disruption from radar detection
**Available for AP models with dedicated radio only. (i.e. ECW-xxxS)

クラウドシリーズのデータシートをダウンロード

クラウドマネージドデータシート
アクセスポイントデータシート
スイッチデータシート
